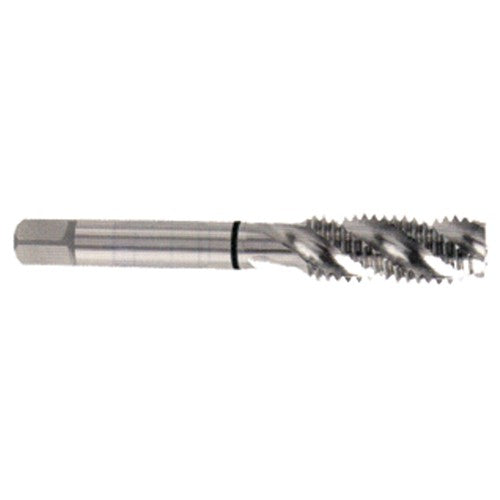

8-32 H3 3FL SP FL COMBO TAP
Item #: YG42T2283
Brand: YG-1 Cutting Tools
Model #: T2283
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Special Feature | Black Ring |
| Threads per Inch (TPI) | 32 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.13″ |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 0.276″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 0.752″ |
| Coolant Supply Property (CSP) | No |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Length Group | 2.5D |
| Flute Count (NOF) | 3 |
| Square Size | 0.131″ |
| Flute Helix Angle (FHA) | 40 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | HSS-EX |
| Tapping Prehole Diameter (Pre-hole) | 0.135″ |
| Thread Tolerance Class (TCTR) | H3 |
