Type H Boring Bar Sleeves

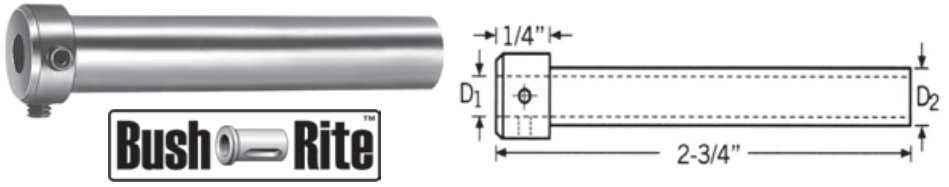

TYPE H BORING BAR SLEEVES
SHORT LENGTH-Ideal For Solid Carbide Boring, Grooving And Threading Tools
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
OD D2 OAL Head Thick. ID D1 Industry Reference # Flatted Shank
Part Number
Round Shank
Part Number
Screw Size
1/2” 2-3/4” 1/4” 1/8" MI-TH84 TBH-05-0125-FB TBH-05-0125-B 6-40 UNF x 1/4
3/16" MI-TH85 TBH-05-0187-FB TBH-05-0187-B
1/4" MI-TH86 TBH-05-0250-FB TBH-05-0250-B 6-40 UNF x 3/16
5/16" MI-TH87 TBH-05-0312-FB TBH-05-0312-B
3/8" MI-TH88 TBH-05-0375-FB TBH-05-0375-B 6-40 x 1/8
5/8” 2-3/4” 1/4” 1/8" MI-TH104 TBH-06-0125-FB TBH-06-0125-B 6-40 UNF x 5/16
3/16" MI-TH105 TBH-06-0187-FB TBH-06-0187-B
1/4" MI-TH106 TBH-06-0250-FB TBH-06-0250-B 6-40 UNF x 1/4
5/16" MI-TH107 TBH-06-0312-FB TBH-06-0312-B
3/8" MI-TH108 TBH-06-0375-FB TBH-06-0375-B 6-40 x 3/16
3/4” 2-3/4” 1/4” 1/8" MI-TH204 TBH-07-0125-FB TBH-07-0125-B 6-40 UNF x 3/8
3/16" MI-TH205 TBH-07-0187-FB TBH-07-0187-B
1/4" MI-TH206 TBH-07-0250-FB TBH-07-0250-B 6-40 UNF x 5/16
5/16" MI-TH207 TBH-07-0312-FB TBH-07-0312-B
3/8" MI-TH208 TBH-07-0375-FB TBH-07-0375-B 6-40 x 1/4
