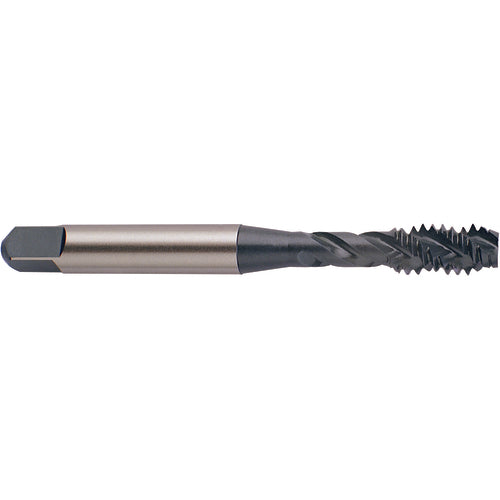

9/26-12 H3 3F SF BOT-HRDS
Item #: YG42E0603
Brand: YG-1 Cutting Tools
Model #: E0603
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 12 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.59″ |
| Coating | HardSlick |
| Thread Cutting Part Length (THL) | 0.709″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 2.067″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Square Size | 0.322″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.486″ |
| Cutting Edge Material | HSSE-V3 |
