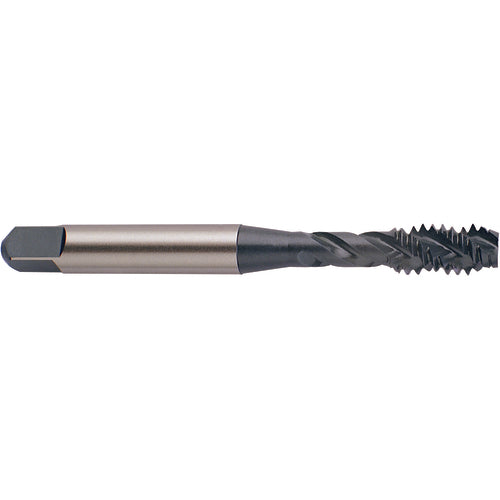

1/2-13 H7 3F SPFL BOT-S/O
Item #: YG42D3567
Brand: YG-1 Cutting Tools
Model #: D3567
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | H7 |
| Threads per Inch (TPI) | 13 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.38″ |
| Coating | Oxide |
| Thread Cutting Part Length (THL) | 0.63″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 2.067″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Square Size | 0.275″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.43″ |
| Cutting Edge Material | HSSE-V3 |
