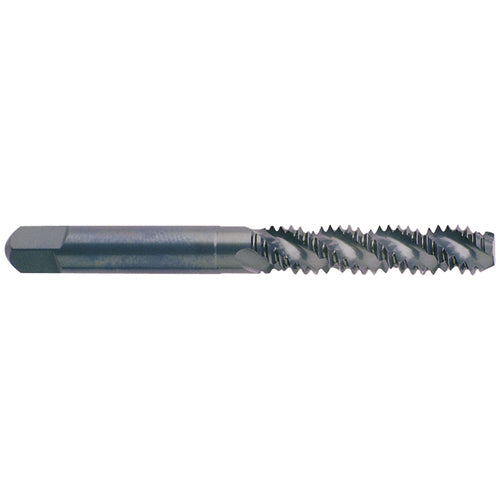

10-32 H3 3FL FAST SPFL TAP BTTM
Item #: YG42C2343
Brand: YG-1 Cutting Tools
Model #: C2343
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Coating | Oxide |
| Thread Size | #10 - 32 |
| Flute Count (NOF) | 3 |
| Thread Diameter Size (TDZ) | #10 |
| Cutting Edge Material | HSSE-V3 |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Cutting Part Length (THL) | 0.88″ |
| Usable Length (LU) | 0.88″ |
| Series/List # | C2 |
| Overall Length (OAL) | 2.38″ |
