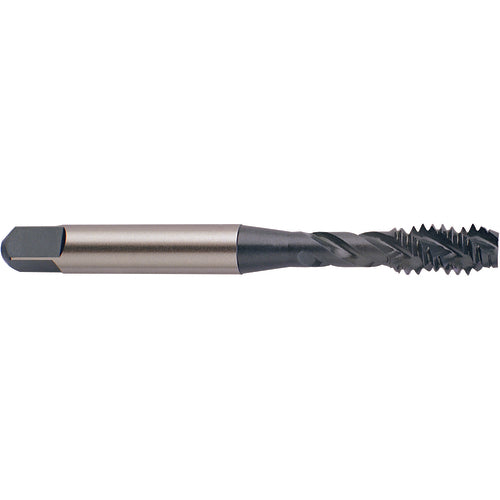

M6X1.0 D11 3F SF BOTT-HRD
Item #: YG42BV31A
Brand: YG-1 Cutting Tools
Model #: BV31A
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Thread Tolerance Class (TCTR) | D11 |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | M |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.5″ |
| Coating | HardSlick |
| Thread Cutting Part Length (THL) | 0.433″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 1″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Square Size | 0.191″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.2″ |
| Cutting Edge Material | HSSE-V3 |
