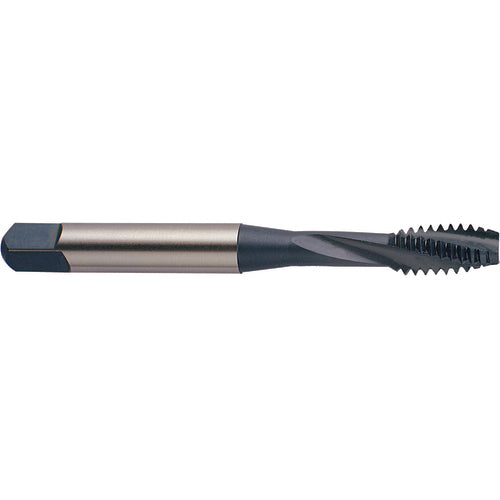

5/8-18 H5 4FL SP FL TAP MOD BTTM
Item #: YG42B5665
Brand: YG-1 Cutting Tools
Model #: B5665
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 18 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | UNF |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.81″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 0.512″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 2.205″ |
| Coolant Supply Property (CSP) | No |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Length Group | 2.5D |
| Flute Count (NOF) | 4 |
| Square Size | 0.36″ |
| Flute Helix Angle (FHA) | 15 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | P-HSS |
| Tapping Prehole Diameter (Pre-hole) | 0.574″ |
