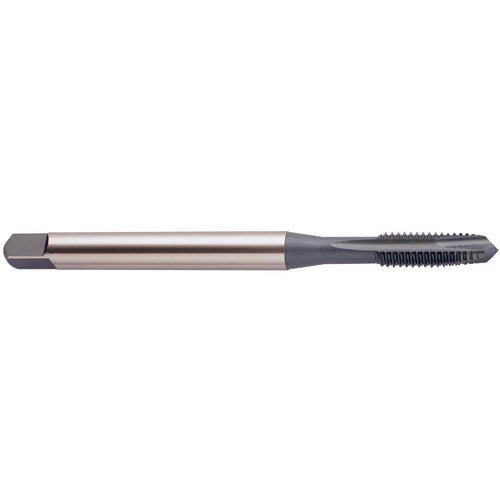

3/8-24 H3 3FL SPPT M7 ANSI
Item #: YG41L3503
Brand: YG-1 Cutting Tools
Model #: L3503
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Threads per Inch (TPI) | 24 |
| Flute Count (NOF) | 3 |
| Thread Standard | UNF |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 3.937″ |
| Cutting Edge Material | HSS-V |
| Thread Cutting Part Length (THL) | 0.748″ |
| Thread Tolerance Class (TCTR) | H3 |
| Usable Length (LU) | 1.252″ |
