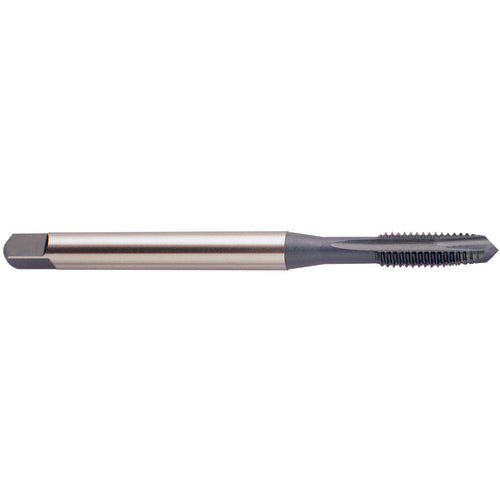

M3X0.5 D3 3FL SP PT PLUG BRIGHT
Item #: YG41K4203
Brand: YG-1 Cutting Tools
Model #: K4203
| Product Specifications | |
|---|---|
| Thread Standard | M |
| Tool Type | Spiral Point Tap |
| Thread Size | M3 × 0.5 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | M3 |
| Thread Cutting Part Length (THL) | 0.374″ |
| Thread Pitch (TP) | 0.5 mm |
| Tapping Prehole Diameter (Pre-hole) | 0.1″ |
| Thread Tolerance Class (TCTR) | D3 |
| End Shape | Plug |
| Usable Length (LU) | 0.646″ |
| Shank Type | Square |
| Overall Length (OAL) | 2.205″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.11″ |
| Coating | Bright |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | K4 |
| Cutting Edge Material | HSSE-V3 |
