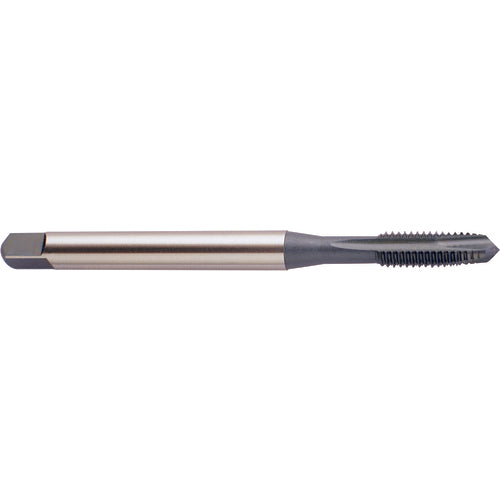

M3.5X0.6 D4 3FL SP PT PLUG STM-OX
Item #: YG41J9224
Brand: YG-1 Cutting Tools
Model #: J9224
| Product Specifications | |
|---|---|
| Thread Standard | M |
| Tool Type | Spiral Point Tap |
| Thread Size | M3.5 × 0.6 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | M3.5 |
| Thread Cutting Part Length (THL) | 0.413″ |
| Thread Pitch (TP) | 0.6 mm |
| Tapping Prehole Diameter (Pre-hole) | 0.116″ |
| Thread Tolerance Class (TCTR) | D4 |
| End Shape | Plug |
| Usable Length (LU) | 0.646″ |
| Shank Type | Square |
| Overall Length (OAL) | 2.205″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.11″ |
| Coating | Oxide |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | J9 |
| Cutting Edge Material | HSSE-V3 |
