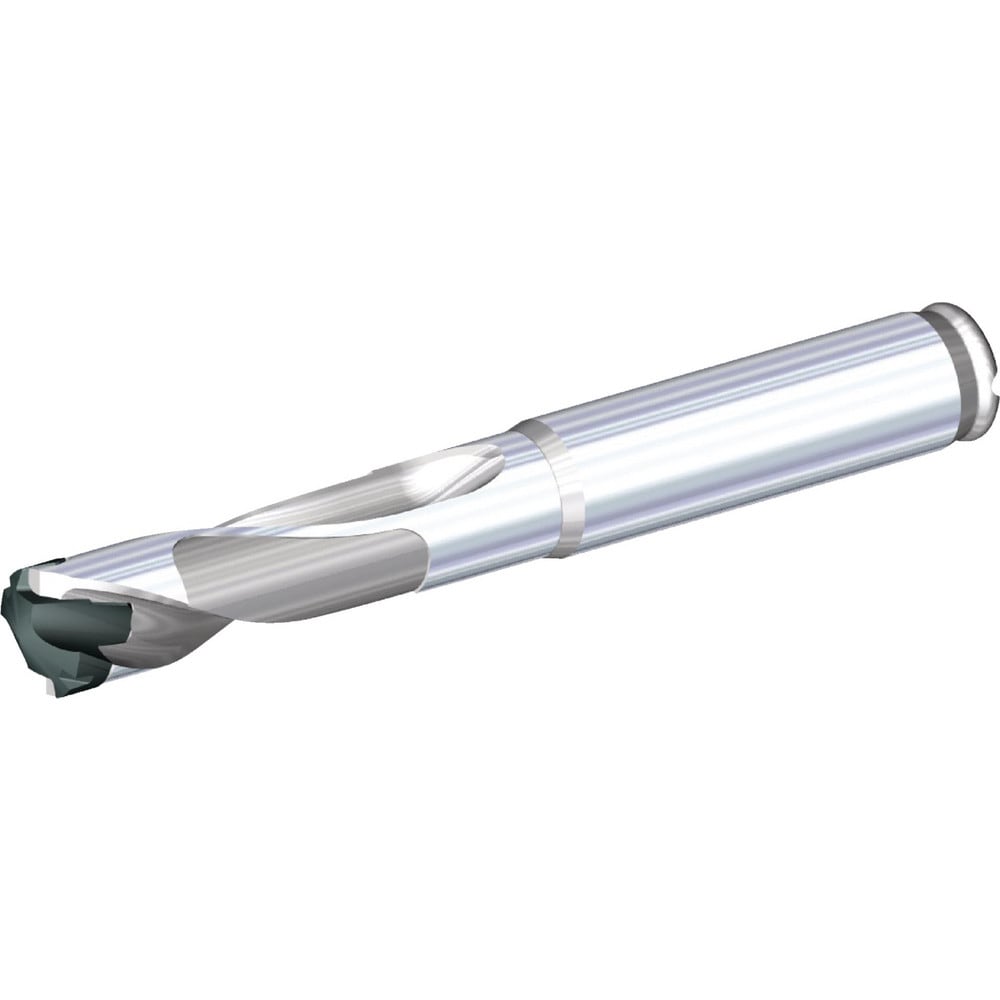

Brand: Widia / Part #: 3851552
Item #: 84255868
Brand: Widia
Model #: 3851552
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (Decimal Inch) | 0.4524 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Fractional Inch) | 1-23/64 |
| Maximum Drill Depth (Decimal Inch) | 1.3600 |
| Shank Type | Cylindrical |
| Insert Style | TDM |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Insert Seat Size | W16 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W16 |
| Overall Length (Decimal Inch) | 3.8750 |
| Overall Length (Inch) | 3-7/8 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 2.0870 |
| Body Length (Decimal Inch) | 2.0870 |
| Shank Length (Decimal Inch) | 1.6701 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.0835 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
