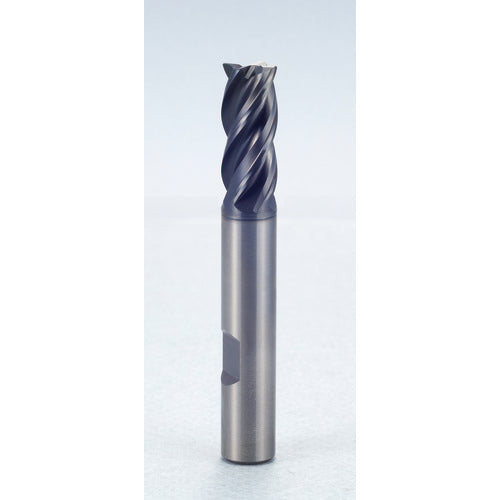

3/4″ × 3/4″ × 3/4″ × 3″ 4 Flute Chamfer Carbide End Mill-Flat Shank - Y-Coating
Item #: YG35UGMF77905
Brand: YG-1 Cutting Tools
Model #: UGMF77905
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Shank Type | Flat |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 3″ |
| Corner Chamfer Width (CHW) | 0.019″ |
| Cutting Edge Material | Carbide |
| Tool Type | 4 Flute Standard Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 36 Degrees |
| Series/List # | UGMF77 |
