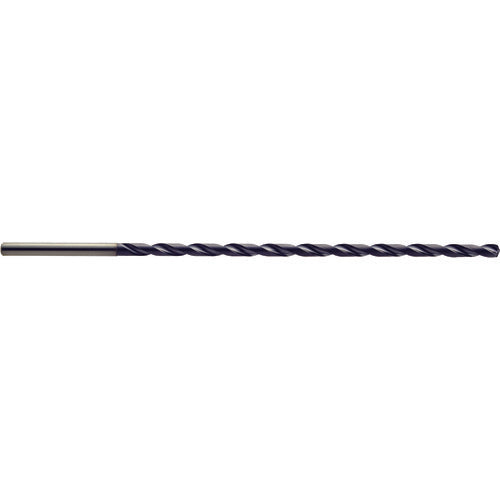

1/8″ Dia. × 6 mm Shank × 99 mm Flute Length × 139 mm OAL, 25xD, 140°, TiAlN, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: YG14DHM25008F
Brand: YG-1 Cutting Tools
Model #: DHM25008F
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Tool Type | CARBIDE DREAM DRILLS MQL TYPE W/ COOLANT HOLES (25XD) |
| Length Group | 25xD |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | DHM25 |
| Application | Steel |
| Length Chip Flute (LCF) | 99 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Overall Length (OAL) | 139 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0227″ |
