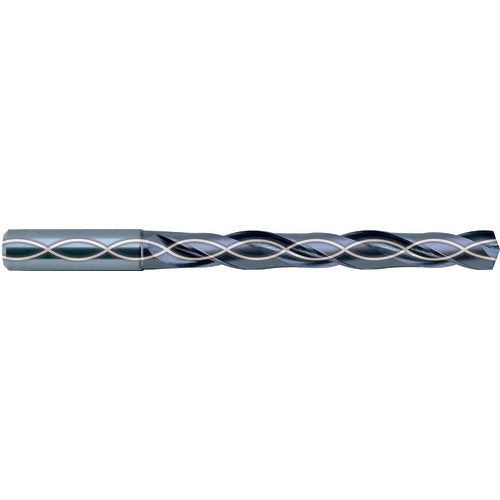

Q Dia. x 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, 140°, TiAIN, 2 Flute, Coolant Thru, Straight Solid Carbide Drill
Item #: YG14DH452017L
Brand: YG-1 Cutting Tools
Model #: DH452017L
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | Q |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.332″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | Q |
| Tool Type | Carbide Dream Drill Inox W/ Coolant (5xD) |
| Length Group | 5xD |
| Measurement Type | Letter |
| Coating | TiAlN |
| Series/List # | DH452 |
| Applicable Material | Steel | Stainless Steel |
| Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
