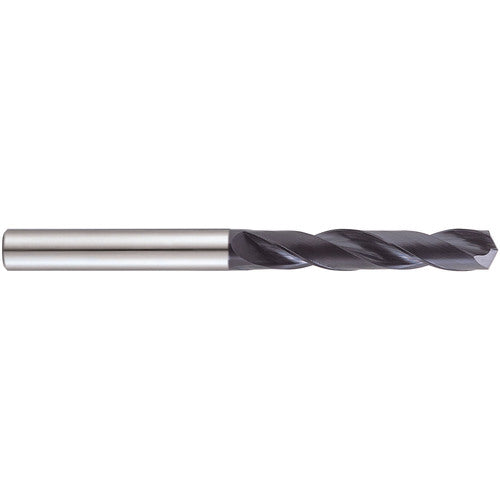

F Dia. x 8 mm Shank × 34 mm Flute Length × 79 mm OAL, 3xD, 140°, TiAlN, 2 Flute, External Coolant, Straight Solid Carbide Drill
Item #: YG14DH423006L
Brand: YG-1 Cutting Tools
Model #: DH423006L
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | F |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.257″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | F |
| Tool Type | Carbide Dream Drill - 3xD |
| Length Group | 3xD |
| Measurement Type | Letter |
| Coating | TiAlN |
| Series/List # | DH423 |
| Applicable Material | Steel |
| Usable Length (LU) | 34 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Length Chip Flute (LCF) | 34 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 79 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
