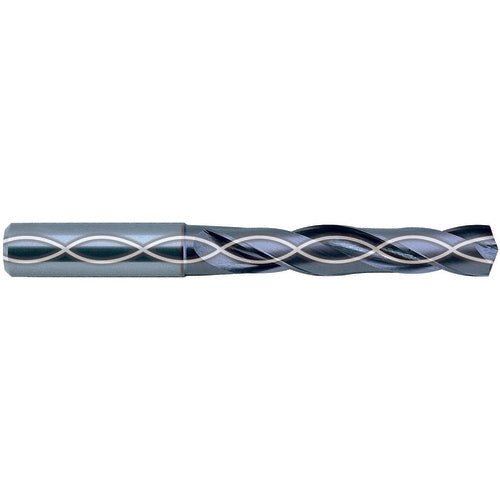

19.6 mm Dia. × 20 mm Shank × 79 mm Flute Length × 131 mm OAL, 3xD, 140°, TiAlN, 2 Flute, Coolant Thru, Straight Solid Carbide Drill
Item #: YG14DH406196
Brand: YG-1 Cutting Tools
Model #: DH406196
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 19.6 mm |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.7717″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 19.6 mm |
| Tool Type | Carbide Dream Drill w/Coolant - 3xD |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DH406 |
| Applicable Material | Steel |
| Usable Length (LU) | 79 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Length Chip Flute (LCF) | 79 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 131 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
