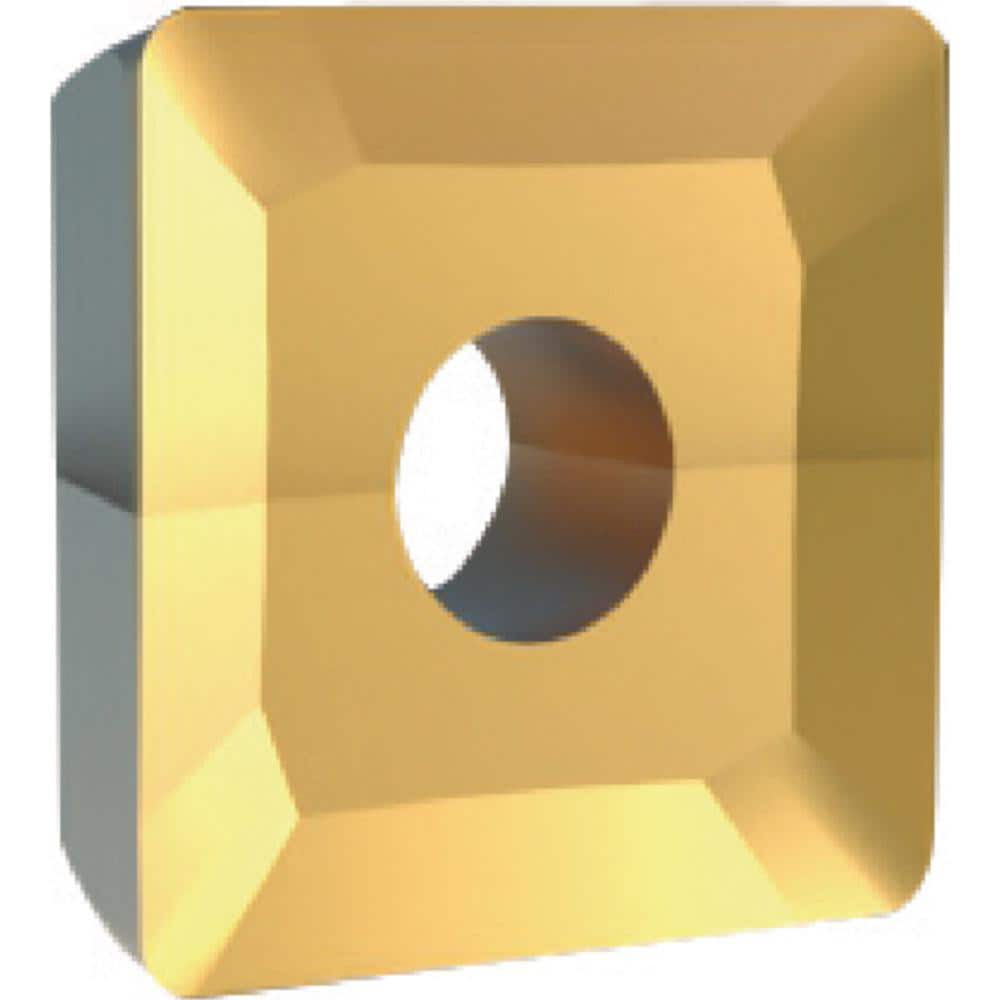

Brand: Widia / Part #: 5281790
Item #: 93377349
Brand: Widia
Model #: 5281790
Product Specifications
| Insert Style | SDEX |
| Insert Size Code | 1204 |
| Insert Size | 43 |
| Insert Material | Carbide |
| Manufacturer Grade | THM-U |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | M690 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1748 |
| Maximum Depth of Cut (Decimal Inch) | 0.5039 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | SDEX432FRALP |
| Iso Code | SDEX120408FRALP |
| Manufacturers Catalog Number | SDEX432FRALP |
| Cutter Series Compatibility | M690 SD1204 IN SDET |
| Chip Breaker | ALP |
| Cutting Direction | Right Hand |
| Material Application | General Purpose |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5039 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5039 |
