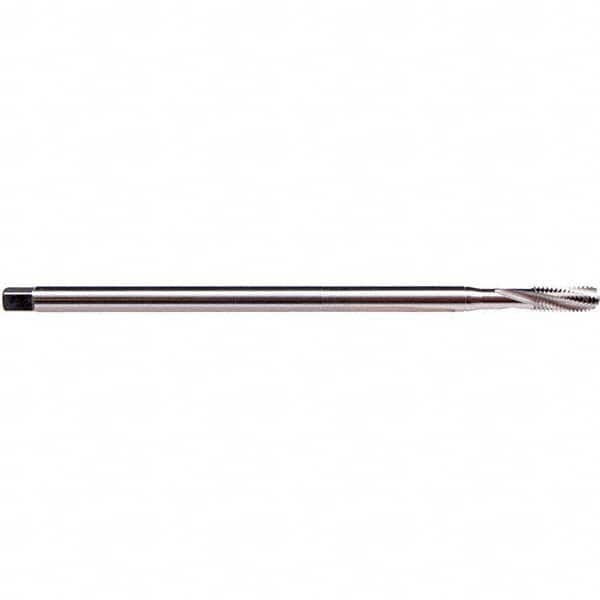

Emuge - Extension Taps Thread Size: M4x0.70 Overall Length (mm): 125.00
Item #: 94617354
Brand: Emuge
Model #: B2461000.0040
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Extension taps are used for deep hole drilling and where a longer reach is required. They are designed with standard threads and an extended shank.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Product Specifications
Extension Taps; Thread Size: M4x0.70 ; Overall Length (mm): 125.00 ; Overall Length (Decimal Inch): 4.921 ; Chamfer: Bottoming ; Thread Limit: D4 ; Class of Fit: 6H
| Thread Size | M4x0.70 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.921 |
| Chamfer | Bottoming |
| Thread Limit | D4 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Tap Type | Extension |
| Finish/Coating | Bright |
| Flute Direction | Right Hand |
| Thread Standard | Metric |
| Material | Cobalt |
| Thread Length (Decimal) | 0.3150 |
| Thread Direction | Right Hand |
| Helix Angle | 15 |
| Flute Direction | Right Hand |
| Series/List | B2461000 |
| Neck Length (Decimal Inch) | 0.8268 |
| Material Application | Steel |
| Shank Size Type | Reduced |
| Shank Diameter (mm) | 4.50 |
| Square Size (mm) | 3.40 |
