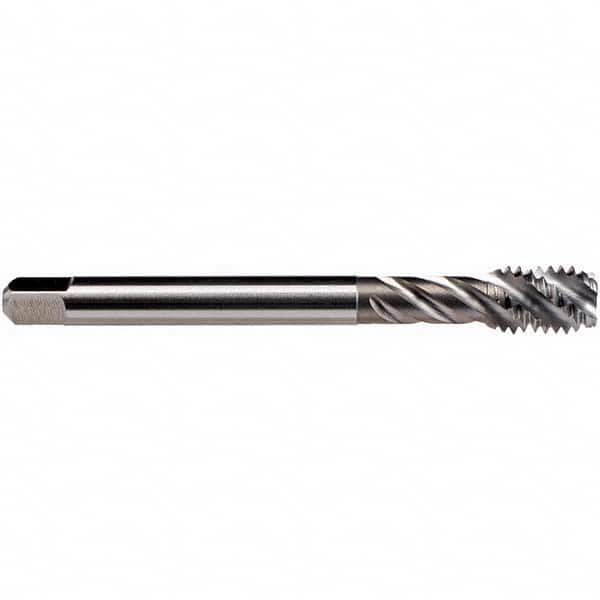

Emuge - Spiral Point STI Taps Thread Size (Inch): 5/8-18 Class of Fit: 2B
Item #: 96225446
Brand: Emuge
Model #: CU513500.5645
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Spiral Point STI Taps; Thread Size (Inch): 5/8-18 ; Class of Fit: 2B ; Thread Limit: H4 ; Number of Flutes: 5 ; Chamfer: Bottoming ; Finish/Coating: Bright
| Thread Size (Inch) | 5/8-18 |
| Class of Fit | 2B |
| Thread Limit | H4 |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 4.3300 |
| Thread Standard | UNF |
| Material | Cobalt |
| Thread Length (Decimal Inch) | 0.5556 |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Square Size (Decimal Inch) | 0.5420 |
| Series/List | CU513500 |
