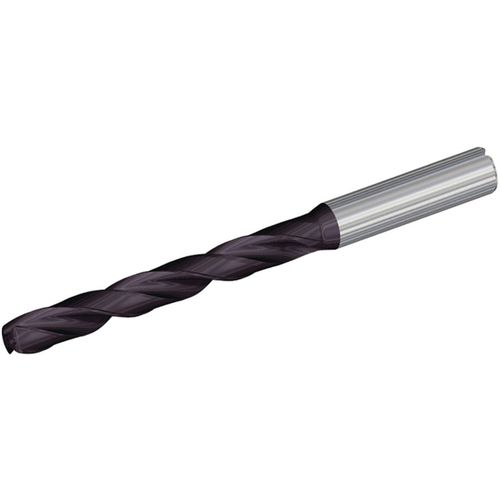

25/64″ Dia. × 0.394″ Shank × 5.59″ Flute Length × 7.28″ OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK534173507
Brand: Widia
Model #: 4173507
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 25/64″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 25/64″ |
| Shape | Center Cut |
| Decimal Equivalent | 0.3906″ |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4.72″ |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 5.59″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Overall Length (OAL) | 7.28″ |
