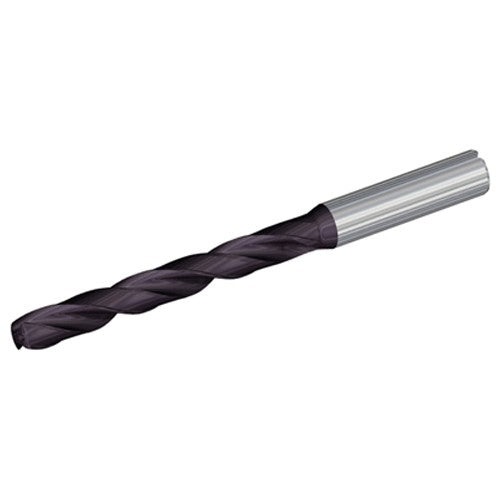

3/8″ Dia. × 0.394″ Shank × 5.51″ Flute Length × 7.28″ OAL, 12xD, TiAlN, 2xD Flute, Coolant Thru, 1MT Solid Carbide Drill
Item #: WK534173506
Brand: Widia
Model #: 4173506
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ |
| Shape | Taper Shank |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ |
| Tool Type | Taper Shank |
| Length Group | 12xD |
| Grade | WU20PD |
| Coating | TiAlN |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Usable Length (LU) | 4.68″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 5.51″ |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 7.28″ |
| Shank Type | 1MT |
