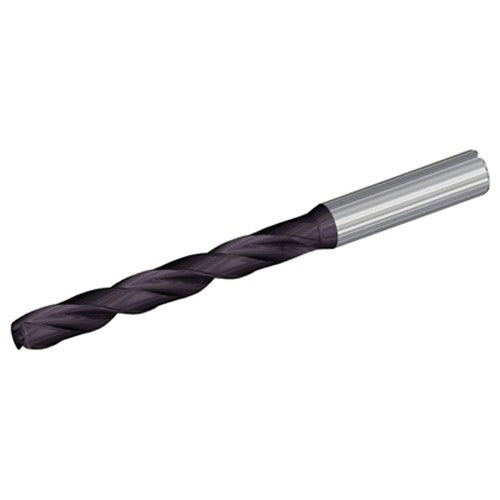

6 mm Dia. × 6 mm Shank × 86 mm Flute Length × 125 mm OAL, 12xD, 132°, TiAlN, 2xD Flute, Coolant Thru, 3MT Solid Carbide Drill
Item #: WK534173479
Brand: Widia
Model #: 4173479
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6 mm |
| Shank Type | 3MT |
| Decimal Equivalent | 0.2362″ |
| Shape | Taper Shank |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Taper Shank |
| Coating | TiAlN |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 72 mm |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 86 mm |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 125 mm |
