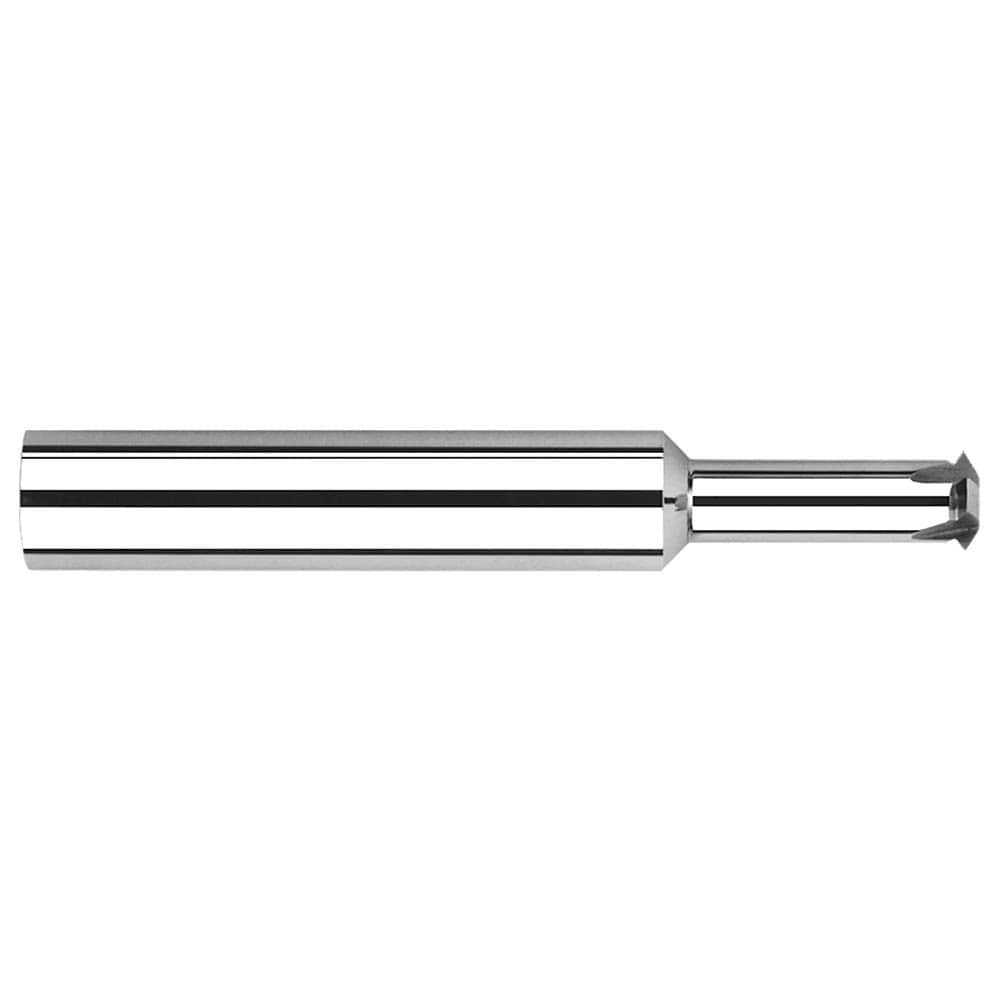

Brand: Harvey Tool / Part #: 54265
Item #: 82498312
Brand: Harvey Tool
Model #: 54265
Product Specifications
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0714 |
| Minimum Threads Per Inch | 14 |
| Maximum Pitch (Decimal Inch) | 0.0313 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | 7/16 in-14 - 7/16 in-32 |
| Thread Depth (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3400 |
| Minimum Nominal Diameter (Inch) | 7/16 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Neck Diameter (Decimal Inch) | 0.2300 |
| Shank Length (Decimal Inch) | 1.7500 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
