3/8X3/8X7/8X2-1/2_
Item #: WK406945586
Brand: Widia
Model #: 6945586
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |

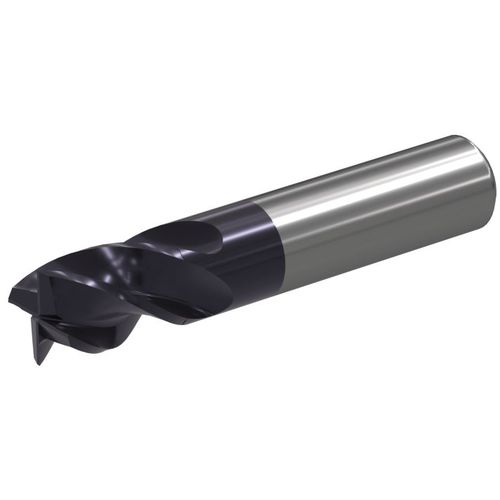

| Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Body Material | Carbide |
| Overall Length (OAL) | 2-1/2″ |
| Style | Finishing |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | W411_R |
| Flute Helix Angle (FHA) | 37 Degrees |
| Shank Length (LS) | 1.374″ |
| Shank Type | Straight | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Square |
| Single / Double End | Single End |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Center Cutting | Yes |
| Grade | WU20PE |
