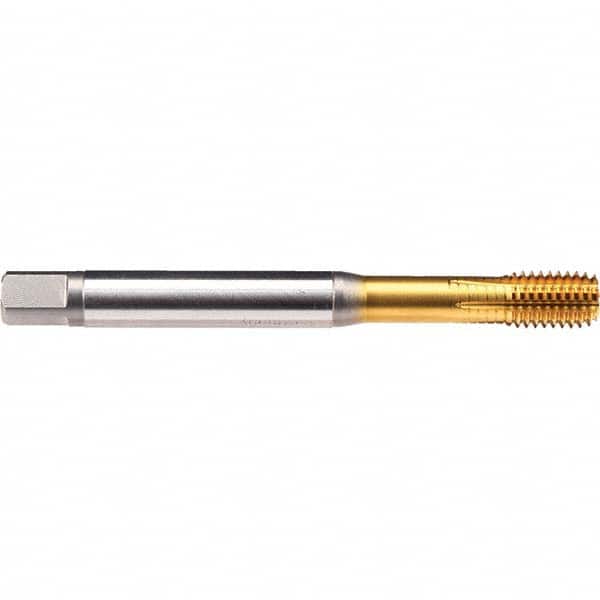

Emuge - M6x1.00 Metric 6HX Bottoming Thread Forming Tap
Item #: 46745048
Brand: Emuge
Model #: B5316A00.0060
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6HX |
| Thread Limit | D5 |
| Chamfer | Bottoming |
| Finish/Coating | TiN-T26 |
| Material | Powdered Metal High Speed Steel |
| Overall Length (mm) | 80.00 |
| Thread Standard | Metric ;M |
| Neck Length (mm) | 30 |
| Tapping Depth (mm) | 18 |
| Thread Direction | Right Hand |
| Shank Diameter (mm) | 6.00 |
| Through Coolant | Yes |
| Material Application | Stainless Steel |
