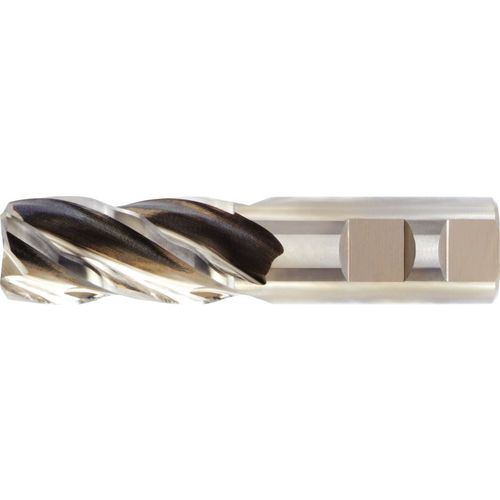

1X2X4 1/2 WAVCUT II M42 6F EM
Item #: WK403887310
Brand: Widia
Model #: 3887310
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Corner Chamfer Width (CHW) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 2″ |
| Body Material | Steel |
| Overall Length (OAL) | 4-1/2″ |
| Style | Roughing |
| Cutting Edge Material | HSSCo |
| Measurement Type | Inch |
| Coating | Uncoated |
| Series/List # | 620V |
| Flute Count (NOF) | 6 |
| Shank Length (LS) | 2.15″ |
| Flute Helix Angle (FHA) | 28 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Cylindrical |
| Single / Double End | Single End |
| End Shape | Radius |
| Center Cutting | Yes |
| Usable Length (LU) | 2″ |
