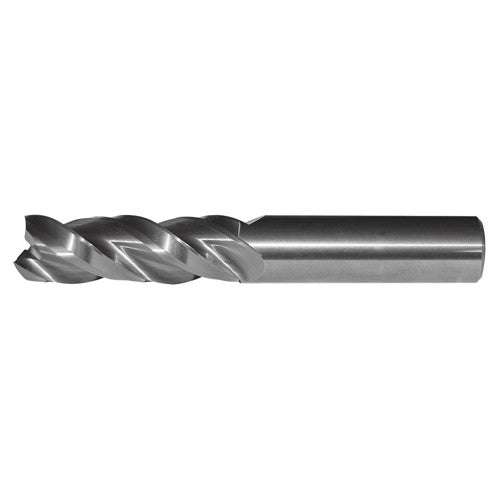

3/4X1 1/2X4 R .120 CARB EM 5A03
Item #: WK403649763
Brand: Widia
Model #: 3649763
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| End Shape | Corner Radius |
| Overall Length (OAL) | 4″ |
| Usable Length (LU) | 1-1/2″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.12″ |
| Coating | Uncoated |
| Grade | UNCOATED |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.75″ |
