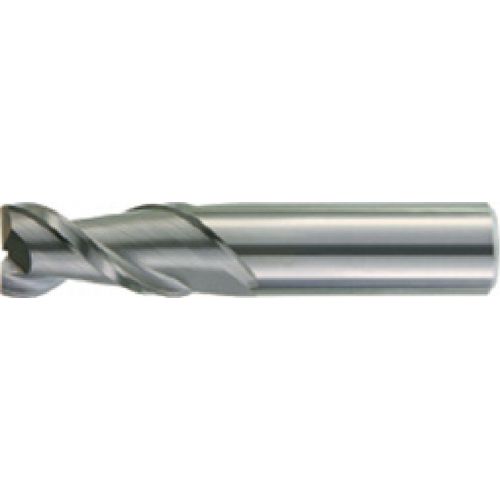

1/4X1/4X3/8X2 R0.03 CARB EM 4K02
Item #: WK403638631
Brand: Widia
Model #: 3638631
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 2″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Tool Type | Center Cut|Single-End |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 45 Degrees|CW |
| Decimal Equivalent | 0.25″ |
| Shank Type | Round |
