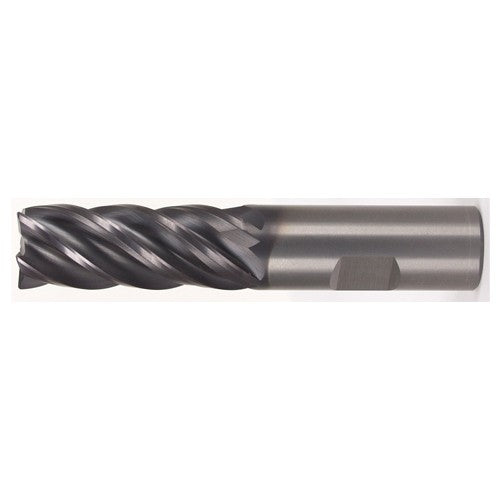

3/4X 1 1/2 .03 RAD CARB EM 5V0SW
Item #: WK403552538
Brand: Widia
Model #: 3552538
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Corner Chamfer Width (CHW) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Grade | WP15PE |
| Overall Length (OAL) | 4″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Style | Roughing | Finishing |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Inch |
| Shank Type | Weldon | Cylindrical |
| Series/List # | 5V0S |
| End Shape | Radius |
| Shank Length (LS) | 2.18″ |
| Usable Length (LU) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Single / Double End | Single End |
