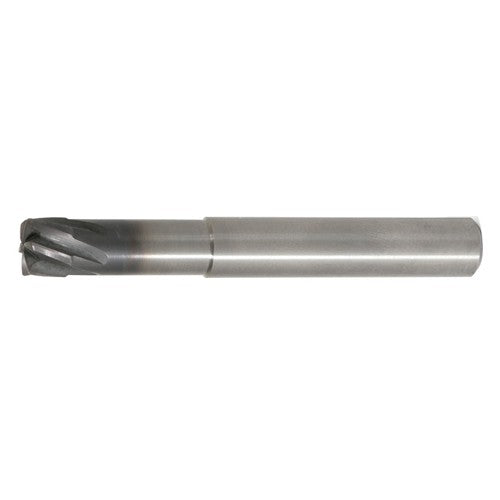

SC FIN 6FL 3/8x3/8x1.1/4x3.1/2
Item #: WK403484762
Brand: Widia
Model #: 3484762
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Corner Chamfer Width (CHW) | 0.0235″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Neck Diameter (DN) | 0.34″ |
| Depth of Cut Maximum (APMX) | 5/16″ |
| Head Length (LH) | 5/16″ |
| Overall Length (OAL) | 3-1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Body Material | HM Material |
| Coating | AlTiN |
| Style | Finishing |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees |
| Series/List # | 7FN6 |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 2.2327″ |
| End Shape | Torus |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-1/4″ |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.023″ |
| Center Cutting | Yes |
