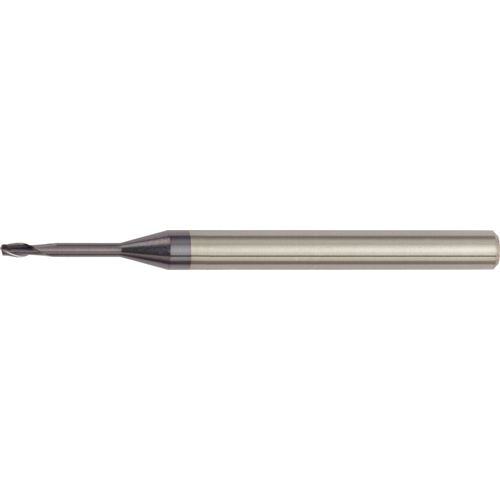

7N2201561RJ CARBIDE END MILL
Item #: WK403454427
Brand: Widia
Model #: 3454427
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.49 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 2.3 mm |
| Usable Length (LU) | 5.7 mm |
| Overall Length (OAL) | 50 mm |
| Applicable Material | Hard Materials |
| Cutting Edge Material | Carbide |
| Tool Type | Center Cut|Single-End |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 30 Degrees|CW |
| Decimal Equivalent | 0.0587″ |
