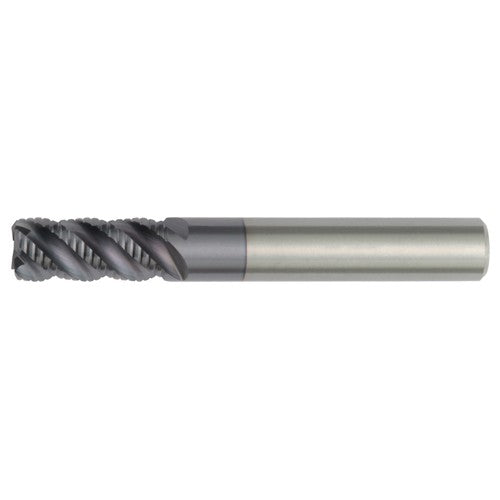

SC RUF 6FL 3/4X3/4X2.1/4X5 R.05
Item #: WK403321507
Brand: Widia
Model #: 3321507
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Corner Chamfer Width (CHW) | 0.05″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Grade | WP15PE |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Flute Type | Flat Shallow |
| Overall Length (OAL) | 5″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Style | Roughing |
| Coating | AlTiN |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | 4M0R |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 2.18″ |
| End Shape | Radius |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-1/4″ |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.05″ |
| Center Cutting | Yes |
