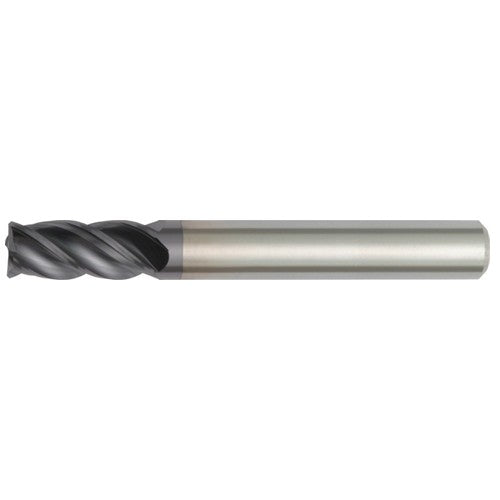

TF4V0516006C TIALN-LW EM
Item #: WK403109031
Brand: Widia
Model #: 3109031
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Usable Length (LU) | 1-1/4″ |
| Overall Length (OAL) | 3-1/2″ |
| Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LW |
| Coating | AlTiN |
| Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 |
| Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Decimal Equivalent | 0.625″ |
