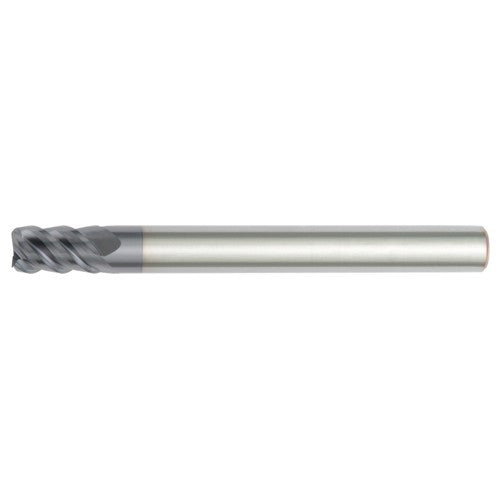

SC FIN 4FL 5/16X5/16X1.1/8X4
Item #: WK403082394
Brand: Widia
Model #: 3082394
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Style | Roughing | Finishing |
| Overall Length (OAL) | 4″ |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN |
| Series/List # | 7S25 |
| Flute Count (NOF) | 4 |
| Shank Length (LS) | 1.496″ |
| Flute Helix Angle (FHA) | 50 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Straight | Cylindrical |
| Single / Double End | Single End |
| End Shape | Square |
| Center Cutting | Yes |
| Usable Length (LU) | 1-1/8″ |
