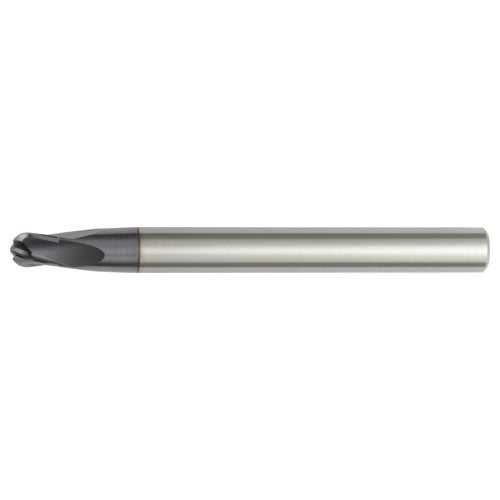

1/4″ Dia. × 3/8″ Shank × 1/4″ DOC × 4″ OAL, Carbide AlTiN, 4 Flute, CW|15° Helix, Round, Ballnose End Mill
Item #: WK403058580
Brand: Widia
Model #: 3058580
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Flute Helix Angle (FHA) | CW|15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Usable Length (LU) | 1/4″ |
| Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 3.18 mm |
| Cutting Edge Material | Carbide |
| Grade | ALTIN-MT |
| Coating | AlTiN |
| End Shape | Ball Nose |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.25″ |
