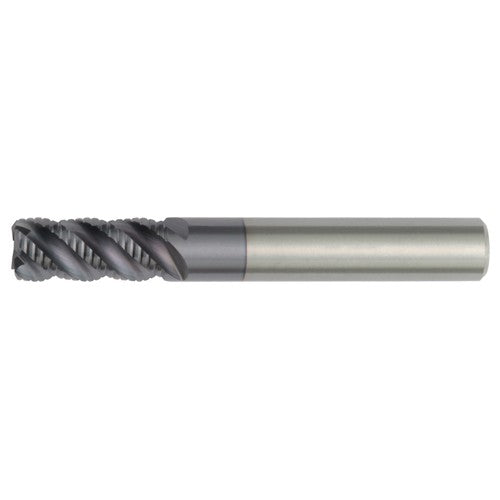

SC RUF 4FL 3/4X3/4X1.1/2X4 R.05
Item #: WK403044786
Brand: Widia
Model #: 3044786
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Corner Radius (RE) | 0.05″ |
| Overall Length (OAL) | 4″ |
| Grade | ALTIN-MW |
| Cutting Edge Material | Carbide |
| Flute Type | Flat Shallow |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|40 Degrees |
| Decimal Equivalent | 0.75″ |
| Shank Type | Weldon |
