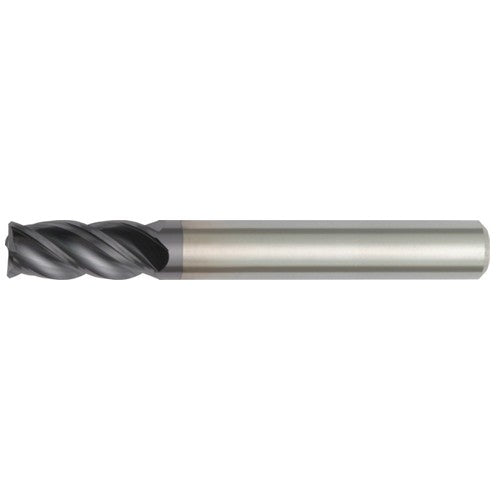

SC FIN 4FL 3/16X3/16X5/16X1.1/2
Item #: WK402870201
Brand: Widia
Model #: 2870201
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/16″ |
| Usable Length (LU) | 5/16″ |
| Overall Length (OAL) | 1-1/2″ |
| Corner Chamfer Width (CHW) | 0.01″ |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LT |
| Coating | AlTiN |
| Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 |
| Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Decimal Equivalent | 0.1875″ |
