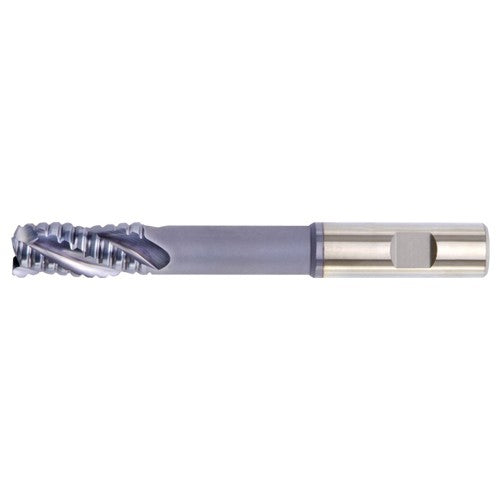

PM RUF 3FL 3/4X3/4X1.5/8X4X6.1/4
Item #: WK402840007
Brand: Widia
Model #: 2840007
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Neck Diameter (DN) | 0.705″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Head Length (LH) | 4″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Flute Type | Chamfered Pitch |
| Overall Length (OAL) | 6-1/4″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSPM |
| Style | Roughing |
| Coating | TiCN |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 6ANR |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 2.18″ |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4″ |
| Single / Double End | Single End |
| Corner Chamfer Width (CHW) | 0.014″ |
| Center Cutting | Yes |
