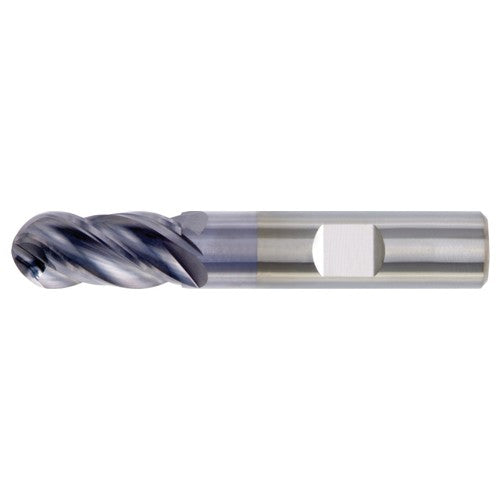

5/8″ Dia. × 5/8″ Shank × 1-1/4″ DOC × 3-1/2″ OAL, Carbide TiAlN, Unequal Flute Spacing , 4 Flute, CW|38° Helix, Weldon, Ballnose End Mill
Item #: WK402837714
Brand: Widia
Model #: 2837714
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Radius (RE) | 7.94 mm |
| Overall Length (OAL) | 3-1/2″ |
| Grade | TIALN-LW |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | TiAlN |
| Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 |
| Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | CW|38 Degrees |
| Decimal Equivalent | 0.625″ |
