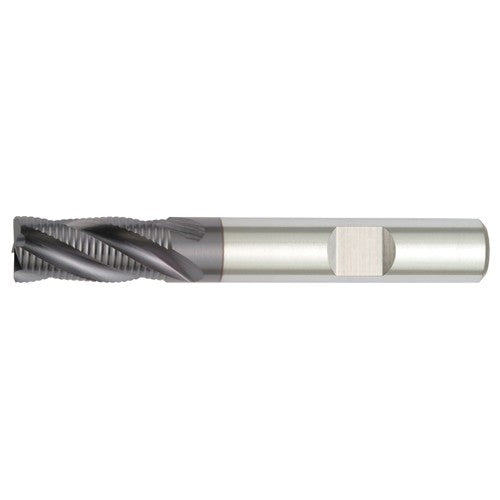

TF6T0R13005 PM RUF 4FL 1/2X1/2X1.1/4X3.1/4
Item #: WK402836219
Brand: Widia
Model #: 2836219
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Corner Chamfer Width (CHW) | 0.035″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Flute Type | Flat Shallow |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-1/4″ |
| Style | Roughing |
| Cutting Edge Material | HSSPM |
| Decimal Equivalent | 0.5″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | 6T0R |
| Flute Helix Angle (FHA) | 35 Degrees |
| Shank Length (LS) | 1.6929″ |
| Shank Type | Weldon | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Chamfer |
| Single / Double End | Single End |
| Usable Length (LU) | 1-1/4″ |
| Center Cutting | Yes |
