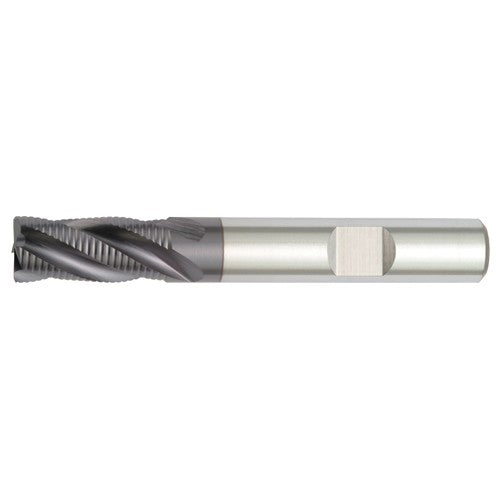

TF6T0R16006 PM RUF 4FL 5/8X5/8X1.5/8X3.3/4
Item #: WK402836212
Brand: Widia
Model #: 2836212
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Usable Length (LU) | 1-5/8″ |
| Overall Length (OAL) | 3-3/4″ |
| Corner Chamfer Width (CHW) | 0.047″ |
| Cutting Edge Material | HSSPM |
| Flute Type | Flat Shallow |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|35 Degrees |
| Decimal Equivalent | 0.625″ |
