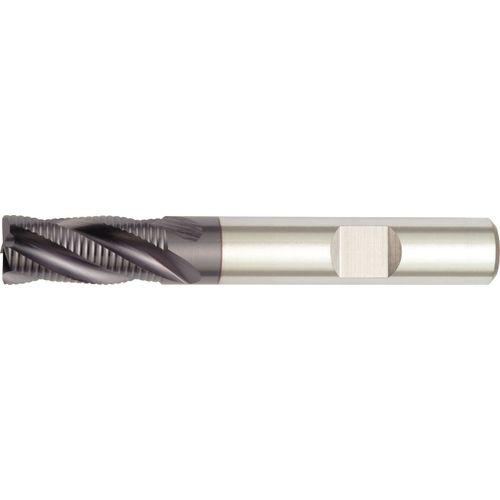

1.1/2X1.1/4X3X5.1/2 PM 6FL CARB EM
Item #: WK402836132
Brand: Widia
Model #: 2836132
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/2″ |
| Tool Type | Center Cut|Single-End |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 3″ |
| Style | Roughing |
| Overall Length (OAL) | 5-1/2″ |
| Decimal Equivalent | 1.5″ |
| Cutting Edge Material | HSSPM |
| Measurement Type | Inch |
| Coating | AlTiN |
| Series/List # | 6T0R |
| Flute Count (NOF) | 6 |
| Shank Length (LS) | 2.492″ |
| Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Cylindrical |
| Single / Double End | Single End |
| End Shape | Chamfer |
| Center Cutting | Yes |
| Corner Chamfer Width (CHW) | 0.059″ |
