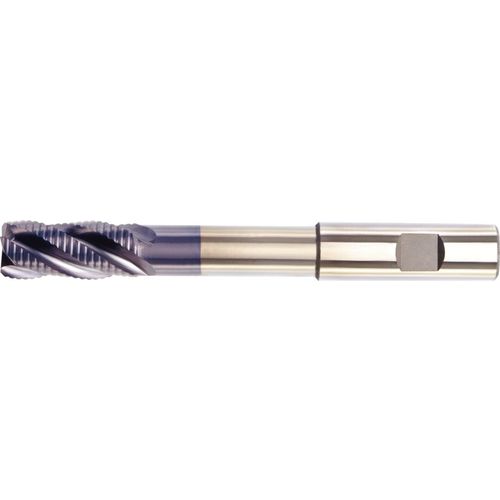

5/8X5/8X1.5/8X4X6.1/8 PM 4FL EM
Item #: WK402836087
Brand: Widia
Model #: 2836087
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 4″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Applicable Material | Super-Alloys / Titanium |
| Overall Length (OAL) | 6-1/8″ |
| Corner Chamfer Width (CHW) | 0.047″ |
| Cutting Edge Material | HSSPM |
| Tool Type | Center Cut|Single-End |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 55 Degrees|CW |
| Decimal Equivalent | 0.625″ |
| Shank Type | Weldon |
