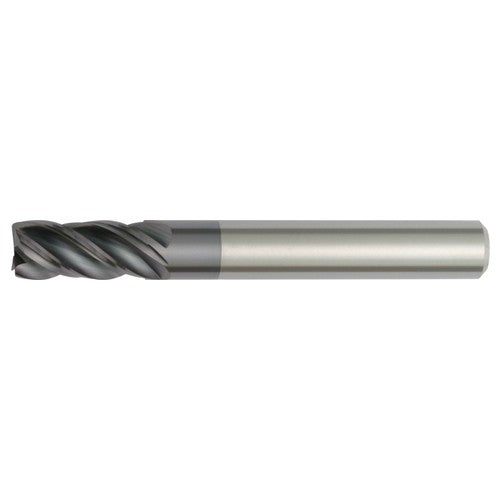

TM4V0T13015S ALTIN-MW HANITA
Item #: WK402831994
Brand: Widia
Model #: 2831994
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Grade | WS15PE |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Flute Type | Unequal Flute Spacing |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3″ |
| Style | Roughing | Finishing |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | 4V0T |
| Flute Helix Angle (FHA) | 38 Degrees |
| Shank Length (LS) | 1.4″ |
| Shank Type | Weldon | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
| End Shape | Square |
| Single / Double End | Single End |
| Usable Length (LU) | 1-1/4″ |
| Center Cutting | Yes |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
