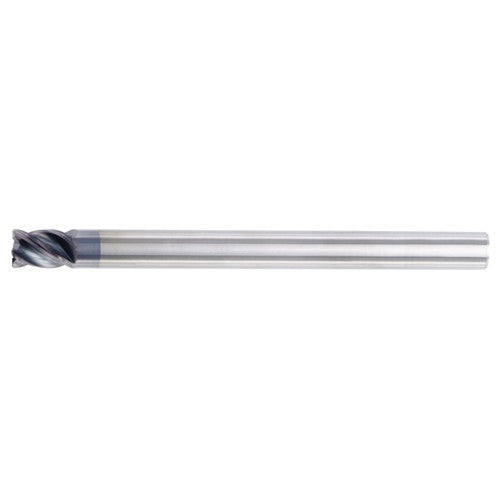

TM4VPT13005 ALTIN-MT HANITA
Item #: WK402831918
Brand: Widia
Model #: 2831918
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Usable Length (LU) | 5/8″ |
| Overall Length (OAL) | 5″ |
| Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide |
| Flute Type | Unequal Flute Spacing |
| Coating | AlTiN |
| Style | 82-01 SEM Side Cutting |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | CW|38 Degrees |
