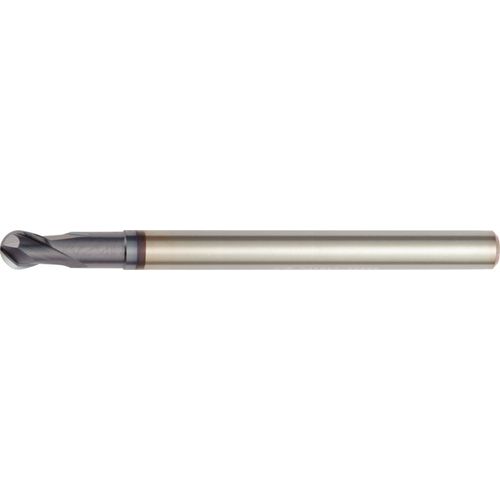

12 mm Dia. × 12 mm Shank × 12 mm DOC × 125 mm OAL, Carbide TiAlN, 2 Flute, 30°|CW Helix, Round, External , Ballnose End Mill
Item #: WK402545219
Brand: Widia
Model #: 2545219
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Grade | WU10PE |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Tool Type | Center Cut|Single-End |
| Depth of Cut Maximum (APMX) | 12 mm |
| End Shape | Ball Nose |
| Overall Length (OAL) | 125 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Style | 82-06 SEM Ball Nose Side-Cntr |
| Coating | AlTiN |
| Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Shank Type | Straight | Cylindrical |
| Series/List # | 70N1 | Vision Plus |
| Usable Length (LU) | 36 mm |
| Shank Length (LS) | 45.87 mm |
| Applicable Material | Steel | Hard Materials |
| Cutting Direction (HAND) | Right Hand |
| Application | Finishing |
| Center Cutting | Yes |
| Corner Radius (RE) | 6 mm |
| Single / Double End | Single End |
| Neck Diameter (DN) | 11.5 mm |
