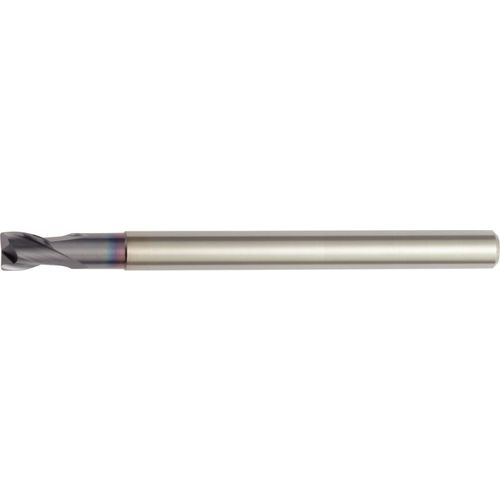

4XR.3X6X4-12X75 SC FIN 2FL CARB EM
Item #: WK402544737
Brand: Widia
Model #: 2544737
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Grade | WU10PE |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 3.7 mm |
| Depth of Cut Maximum (APMX) | 4 mm |
| Head Length (LH) | 12 mm |
| Overall Length (OAL) | 75 mm |
| Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlTiN |
| Style | Finishing |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| Shank Type | Straight | Cylindrical |
| Series/List # | 75N2 |
| End Shape | Radius |
| Shank Length (LS) | 37.998 mm |
| Usable Length (LU) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Hard Materials |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.3 mm |
| Center Cutting | Yes |
| Corner Chamfer Width (CHW) | 0.3 mm |
