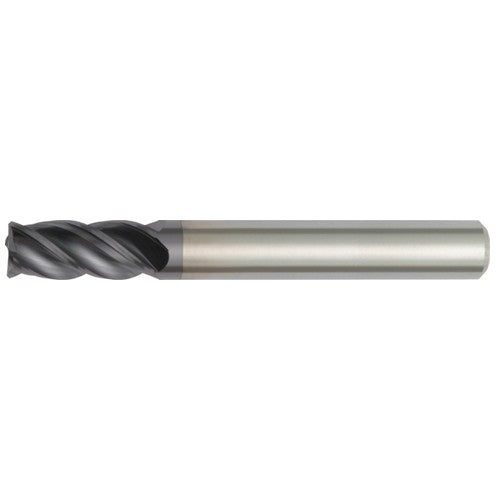

SC FIN 4FL 1/2X1/2X5/8X2.1/2
Item #: WK402232055
Brand: Widia
Model #: 2232055
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Grade | TIALN-LW |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Flute Type | Unequal Flute Spacing |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/2″ |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
| Style | Roughing | Finishing |
| Coating | AlTiN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | 4V05 |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 1.6142″ |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5/8″ |
| Single / Double End | Single End |
| Corner Chamfer Width (CHW) | 0.02″ |
| Center Cutting | Yes |
