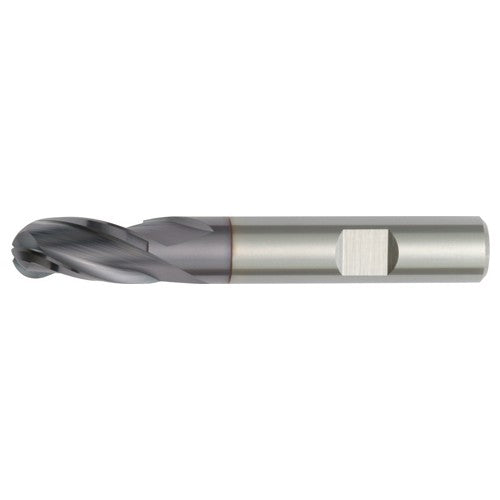

10 mm Dia. × 10 mm Shank × 19 mm DOC × 72 mm OAL, Carbide TiAlN, 3 Flute, CW|35° Helix, Weldon, Ballnose End Mill
Item #: WK401863330
Brand: Widia
Model #: 1863330
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | CW|35 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 19 mm |
| Usable Length (LU) | 19 mm |
| Overall Length (OAL) | 72 mm |
| Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LW |
| Coating | TiAlN |
| End Shape | Ball Nose |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 0.3937″ |
