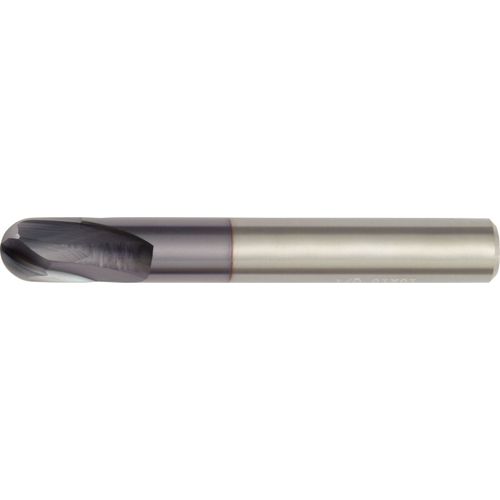

10 mm Dia. × 10 mm Shank × 10 mm DOC × 76 mm OAL, Carbide TiAlN, 2 Flute, 15°|CW Helix, Round, External , Ballnose End Mill
Item #: WK401860134
Brand: Widia
Model #: 1860134
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Usable Length (LU) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Depth of Cut Maximum (APMX) | 10 mm |
| Corner Radius (RE) | 5 mm |
| Overall Length (OAL) | 76 mm |
| Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | TiAlN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | 15 Degrees|CW |
| Decimal Equivalent | 0.3937″ |
| Shank Type | Round |
